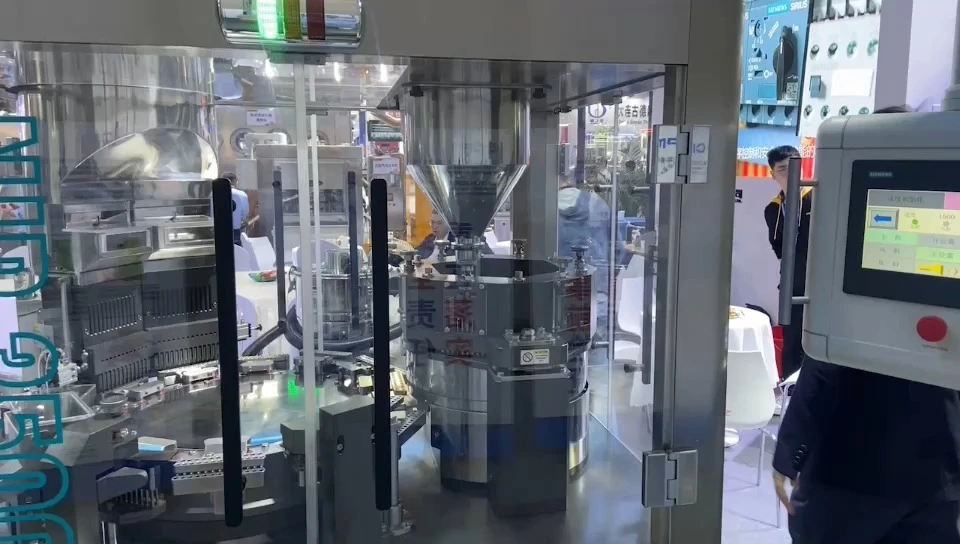

NJP-3500 Full Automatic Capsule Filling Machine
NJP-3500 automatic capsule filling machine, the company after years of innovation and improvement, and by domestic and foreign customers for a long time to use, excellent response, by the customer's trust and praise.
Introduction:
Double row of 25-holes, the 12-workstations design, at and abroad to become only the largest single production of high-tech
Product features
Adopt the second generation totally enclosed turntable design. The upper die adopts two shafts to move up and down
cover, easy to disassemble and assemble, easy to clean, and the sealing ring is not changed. It is necessary to turn on the turntable
It adopts three dimensional control elements; and takes the undersurface plane of dosage as base, so as to eliminate the matura
Main technical parameters
Output | Max 210000 pcs/h |
Machine weight | 2200Kg |
Machine Dimensions | 1555*1165*2040 (not include external electric control cabinet） |
Power Supply | 380/220V 50Hz |
Motor power | Motor 4.4KW vacuum 3KW cleaner 2.2KW |
No.of segment bores | 25 |
Vacuum | Pumping rate 72m3/h,-0.03~-0.05Mpa |
Dust | 20Kpa 210m3/h |
Noise | <80DB（A） |
Making rate | More than 98% |
Suitable for Capsule | 000、00.0，1，2，3，4．5# |
Filling error | ±2.5%-±3.5% |
