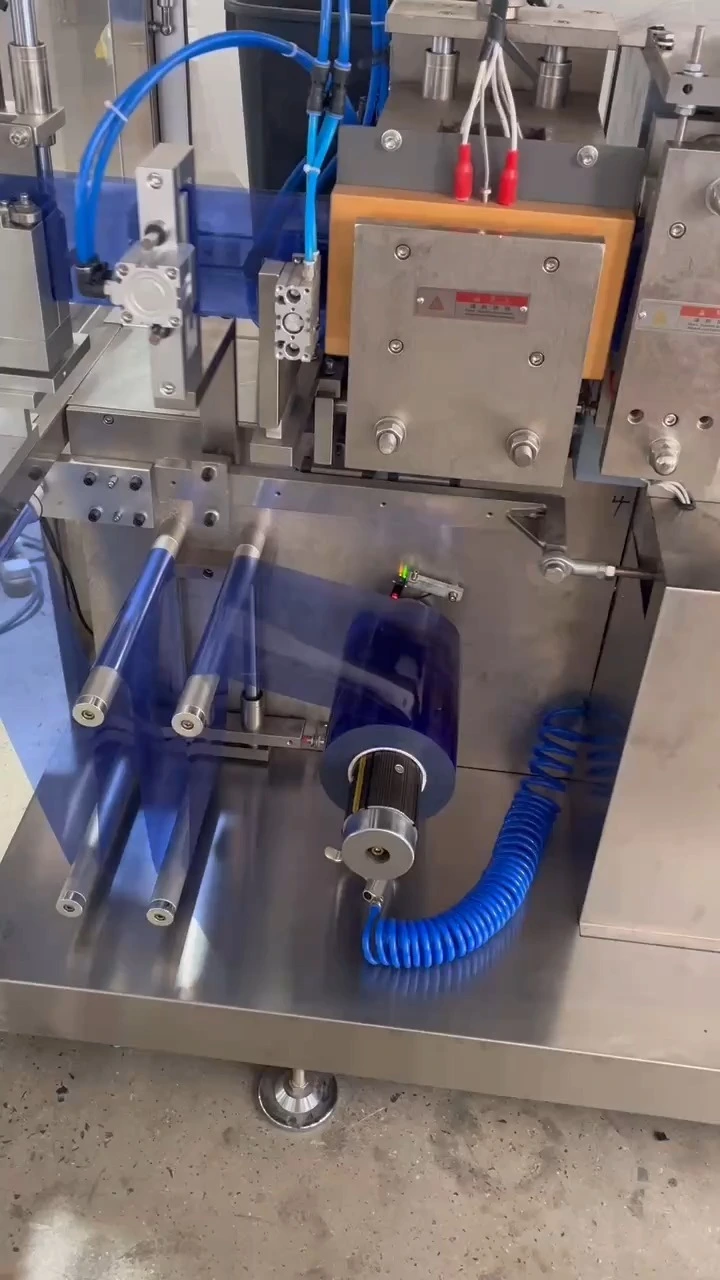

Oral Automatic Liquid Filling Sealing Machine
The Oral Automatic Liquid Filling Sealing Machine is designed for high-efficiency, precise filling and sealing of liquid products in the oral care, pharmaceutical, and food industries. Ideal for filling mouthwash, oral rinses, liquid vitamins, and other liquid formulations, it ensures consistent volume accuracy and airtight sealing to maintain product quality. This machine streamlines production lines by combining filling, sealing, and packaging processes into one automated system, reducing labor costs and increasing throughput.
Description:
Oral liquid, liquid, pesticide, perfume, cosmetics and pulp food category, etc
Product features
1). It adopts PLC control and stepless frequency conversion speed regulation.
2). The working processes such as unwinding, plastic forming, filling, batch number printing, indentation, punching and cutting are completed automatically by the program.
3). It adopts human-machine interface device, which has simple operation.
4). The filling has no dripping, bubbling, and overflowing.
5). The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.
6). The main penumatic and electrical components adopt imported brand.
7). It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.
Main technical parameters
Max. forming depth | 12mm |
Punch frequency | 0-30times/min |
Packing material | PVC/PE，PET/PE（0.2-0.4）×140mm |
Filling volume | 1-50ml |
Toal power supply power | 7KW |
Voltage | 220-380V/50Hz |
Machine weight | 900Kg |
Overall dimension (L*W*H) | 2300*850*1400(mm) |
samples
