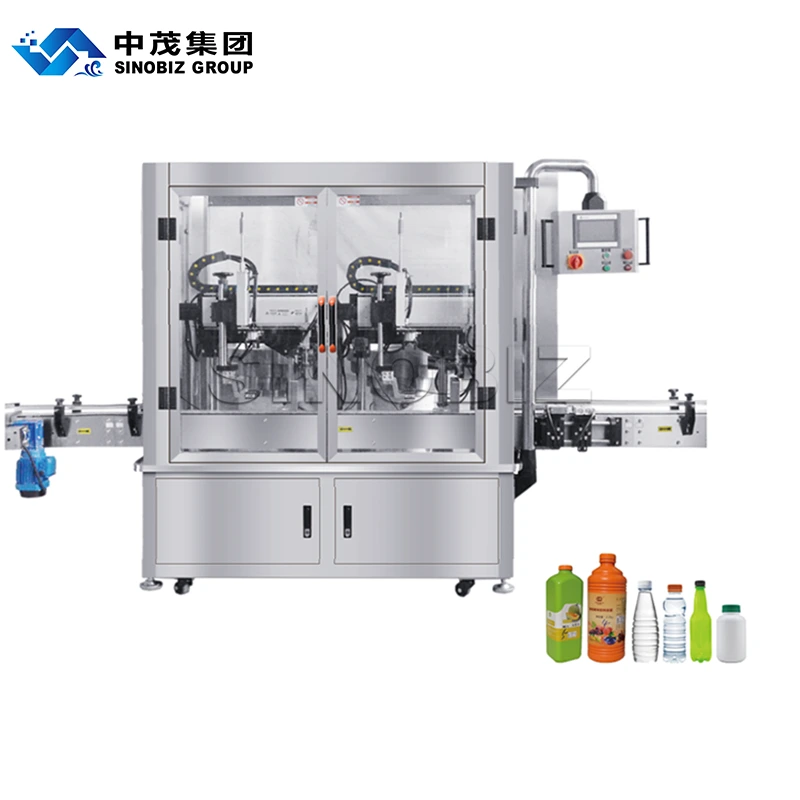

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 1

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 2

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 3

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 4

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 5

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 6

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism

Servo-Driven Follow-Up Capping Machine High-Precision Bottle Conveying Solution

Servo-Linked Precision Capping, Bottle & Cap Protection Without Damage: Adopts a combined design of a servo bottle feeding mechanism and a reciprocating servo-following capping mechanism, paired with a multi-axis motion control driver. This realizes synchronous linkage between the capping mechanism and bottle feeding, completing capping and rapid reset while the bottle is moving. With repeated follow-up tightening, capping is precise and stable; there is no damage to the bottle body or cap throughout the process, and the capping success rate is high. It is suitable for the capping needs of small-mouth bottles in industries such as food, daily chemicals, and lubricating oil.

Wide Application Range & Convenient Specification Switching: Supports cap size adaptation of 20-80mm, compatible with various packaging materials and small-mouth bottle types, offering flexible application scenarios. Product specification replacement is fast, no complex debugging or additional spare parts are required, which significantly reduces production changeover time and improves production flexibility.

Efficient & Stable Mass Production, Suitable for Assembly Line Operations: Features a linear structural design, ensuring stable and reliable operation with low noise. Core components have excellent performance and low failure rates; the production capacity can reach 30-60 bottles per minute (adjustable according to cap type), suitable for medium and large-scale mass production needs. It can be seamlessly integrated into existing production lines to improve overall production efficiency.

Intelligent & Easy Operation, Simple & Efficient Maintenance: Equipped with a professional electrical control system, the operation logic is clear and easy to understand, allowing users to get started without professional skills. The equipment has a reasonable structural design, simple maintenance processes, and convenient daily inspection and maintenance, reducing labor and operation and maintenance costs. It is compatible with 380V/50HZ power supply and 0.6-0.8mpa working air pressure, with stable operating parameters, suitable for industrial production environments.

Quotation valid period:

6 months

Delivery date:

<30 Days

Payment terms:

T/T

Guarantee period:

1 Year

Inquiry

Write a Review

Follow-Up Capping Machine RF-150 composed of servo bottle conveying mechanism

The RF-150 Tracking Capping Machine is a high-efficiency automated device integrating servo drive and intelligent control technology. Tailor-made for products requiring capping and sealing, it is widely applicable to the automatic capping operations of various small-mouth bottles in industries such as food, daily chemicals, and lubricating oil. The entire machine consists of a servo bottle feeding mechanism, a reciprocating servo-following capping mechanism, an electrical control system, and a frame. Adopting a linear structural design, it operates stably and reliably with convenient operation and maintenance, making it an ideal supporting equipment for medium and large-scale production scenarios.

The core advantage of the equipment lies in the precise regulation of the multi-axis motion control driver, which can drive the reciprocating servo capping mechanism and the bottle feeding mechanism to achieve synchronous linkage. It completes capping and rapid reset actions while the bottles are continuously moving, grabs the caps, and then performs repeated follow-up tightening to realize flexible and efficient capping operations. Throughout the process, there is no damage to the bottle bodies or caps, and the capping success rate is high. It has a wide application range, supporting cap size adaptation of 20-80mm, compatible with various packaging materials and small-mouth bottle types. Product specification replacement is fast, no complex debugging or additional spare parts are required, which greatly improves production flexibility.

In terms of performance parameters, the equipment is compatible with 380V/50HZ power supply and 0.6-0.8mpa working air pressure, with an output power of 8kw and a production capacity of 30-60 bottles per minute (specifically adjustable according to the cap type), which can fully meet the needs of large-scale production. With a machine size of 3000×1100×1900mm and a weight of 650kg, it features a reasonable structural layout and can be seamlessly integrated into existing production lines. Equipped with a concise and easy-to-understand electrical control system, it allows quick mastery without professional skills, significantly reducing manual intervention and operation and maintenance costs, and providing enterprises with a stable, efficient, and flexible capping solution.

RF-150 Follow-Up Capping Machine Equipped with Servo Bottle Conveying Mechanism 7

Features

Servo-Linked · Precision Capping：Servo bottle feeding plus reciprocating servo-following capping mechanism, driven by multi-axis motion control, achieving synchronous capping following the bottle's movement.

Wide-Range Adaptation · Flexible Production Changeover： Supports cap sizes of 20-80mm, compatible with various packaging materials; rapid product specification switching without additional spare parts.

Efficient & Stable · Mass Production Adaptation：Linear structural design for stable and reliable operation; production capacity of 30-60 bottles per minute (adjustable according to cap type), suitable for large-scale production.

User-Friendly · Easy Operation & Maintenance： Equipped with a professional electrical control system with clear operation logic; reasonable structural design for simple maintenance, no professional skills required.

Machine and products

Follow-Up Capping Machine

Follow-Up Capping Machine

Features

The capping mechanism synchronizes with the bottle feeding process in real time, completing tightening and rapid reset while the bottle is moving. Repeated follow-up capping ensures firmness, with no damage to the bottle body or cap throughout the process. It boasts a high capping success rate and is suitable for the sealing needs of various small-mouth bottles.

Breaks the limitations of bottle and cap specifications, widely applicable to products in industries such as food, daily chemicals, and lubricating oil. No complex debugging is required for production changeover, significantly reducing downtime and improving production flexibility and adaptability.

Standardized operating procedures lower the entry threshold, facilitating daily inspection and maintenance. It is compatible with 380V/50HZ power supply and 0.6-0.8mpa working air pressure, with stable operating parameters suitable for industrial production environments, reducing labor and operation and maintenance costs.

Main technical parameters

Model	RF-150
Supply power(V/H-Z)	380V/50HZ
Capacity	30-60(bottle lid decision)
Power(kw)	8
Air pressure	0.6-0.8mpa
Cap size	20-80
*Dimension(LWH)(mm)*	300011001900
Weight(kg)	650
