Tool-Free Disassembly and Easy Cleaning Double Head Tracking Filling Machine
Double Head Tracking Filling Machine RF-GSF-2 easy to clean and can be disassembled without tools
The RF-GSF-2 Double Head Tracking Filling Machine is an automatic filling equipment that complies with GMP standards. It adopts the principle of plunger-type quantitative filling and realizes full-process automatic control of bottle feeding, positioning, filling and bottle discharging through Japan Mitsubishi PLC, ensuring precision and efficiency. Equipped with double head tracking filling technology, the equipment is designed for production scenarios where bottles move continuously, completing a full cycle of functional actions including tracking and inserting into the bottle mouth, tracking and filling, fast rising and quick returning. Each functional action is decomposed into horizontal tracking motion and vertical lifting motion to ensure filling accuracy.
The equipment has multiple core advantages: the touch screen operation is intuitive and convenient, and the lifting-type filling design effectively prevents foam generation; the measurement accuracy is as high as ±1%, the filling cylinder is ground, and combined with a unique filling valve design, it achieves leak-free filling; it is equipped with no-bottle no-filling and automatic shutdown functions when bottles are full, and can be customized with positioning devices according to bottle types, featuring strong adaptability.
In terms of configuration and hygiene, the equipment adopts France Schneider frequency converter and Taiwan Airtac pneumatic components, ensuring stable and reliable performance; the material contact parts are made of SUS304 stainless steel, complying with hygiene and safety standards. It also supports tool-free disassembly and assembly, online cleaning and high-temperature sterilization, making cleaning and maintenance convenient. With a filling range of 200-1000ml and a filling speed of up to 45-50 bottles per minute, the equipment is widely applicable for filling liquid and paste products in food, daily chemical, pesticide, fine chemical and other industries.
Features
Double Head Tracking Filling Design: Adapted to production scenarios where bottles move continuously, it completes a full cycle of actions including tracking and inserting into the bottle mouth, tracking and filling, fast rising and quick returning (each action is decomposed into horizontal tracking motion and vertical lifting motion), ensuring precise synchronization of the filling process and improving production efficiency.
Plunger-Type Quantitative Filling with High Measurement Accuracy: Adopts the principle of plunger-type quantitative filling with a measurement accuracy of ±1%. Equipped with a ground filling cylinder and a unique filling valve design, it achieves leak-free filling and ensures the consistency and accuracy of product filling volume.
Convenient Cleaning and Maintenance: Supports tool-free disassembly and assembly, making operation simple and labor-saving. It also enables online cleaning and high-temperature sterilization functions, meeting the hygiene and cleaning requirements of various industries and significantly reducing equipment maintenance costs and time costs.

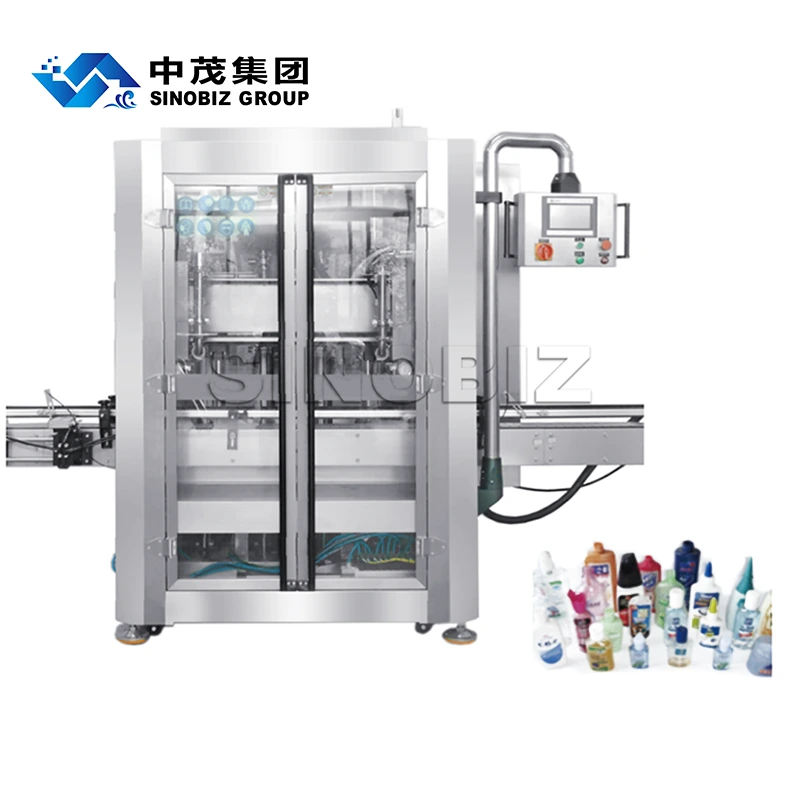

machine and products
Features
Lifting-Type Filling to Prevent Foam Generation: Supports tool-free disassembly and assembly, making operation simple and labor-saving. It also enables online cleaning and high-temperature sterilization functions, meeting the hygiene and cleaning requirements of various industries and significantly reducing equipment maintenance costs and time costs.
Intelligent and Stable Control System: Equipped with Japan Mitsubishi PLC programmable controller and France Schneider frequency converter, combined with an intuitive touch screen operation, it realizes full-process automatic control of bottle feeding, positioning, filling and bottle discharging. It operates accurately and stably, with flexible and efficient speed regulation and low learning cost.
High-Quality Core Configuration: Adopts Taiwan Airtac pneumatic components with reliable and durable performance; the material contact parts are made of SUS304 stainless steel, complying with hygiene and safety standards and GMP standards, ensuring the safety and compliance of the product filling process.
Main technical parameters
|
Model |
RF-GSF-2 |
|
Filling range |
200-1000ml |
|
Filling speed |
<45-50 bottles/min |
|
Measurement accuracy |
±1% |
|
Power |
5.8kw 380v |
|
Air pressure |
0.6-0.7mpa |
|
Machine dimension |
2000*1350*2000mm |
|
Weight |
450kg |
