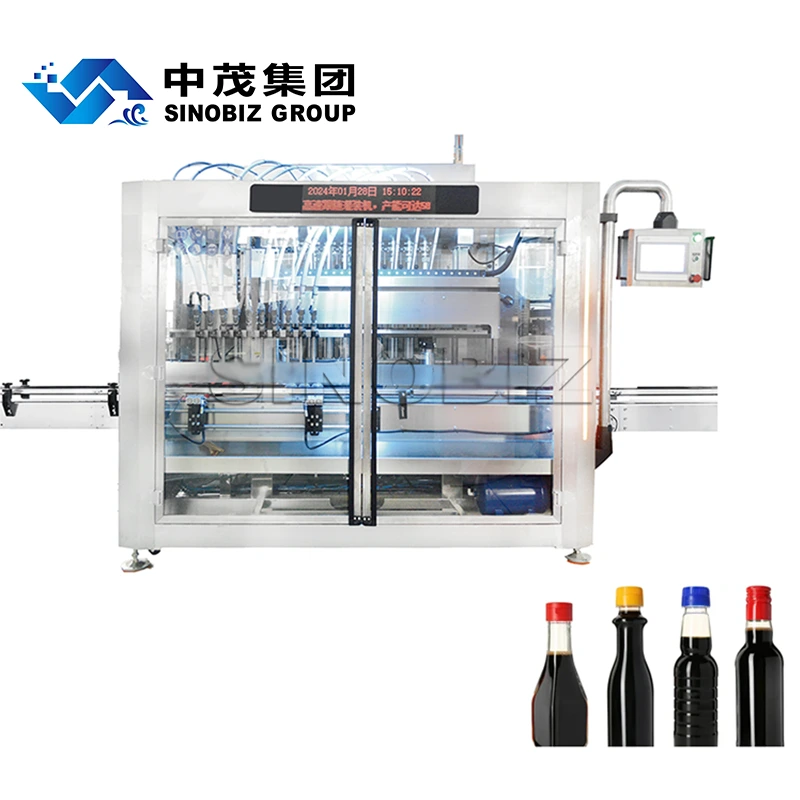

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 1

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 2

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 3

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 4

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 5

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 6

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 7

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities 8

Twelve-Head Tracking Filling Machine High-Speed Adaptation for Bottles of Various Shapes and Capacities

Twelve-Head Tracking Filling Machine RF-GSF-6 8 10 12 Filling for Multi-Specification Bottles

Tracking-Type High-Speed Filling, Outstanding Efficiency: Equipped with sensors for precise bottle detection and a servo follow-up system to achieve tracking-type filling; no production pause, strong continuity

Multi-Specification Compatibility, Easy Product: Suitable for 100-1000ml filling range, flexibly adapting to bottles of different shapes, heights and capacities without replacing core components

Product changeover adjustment can be completed in just a few minutes, completely solving the time-consuming and laborious problem of frequent machine adjustment in multi-variety and small-batch production

Precise Measurement, Controllable Error: Filling measurement error is strictly controlled within ±1%, with strong consistency among filling heads, effectively reducing material waste and ensuring stable product quality

Multiple Models Available, Capacity-Adaptable: Four models provided: RF-GSF-6L/8L/10L/12L, with filling speeds ranging from 60-130 bottles/minute and uniform power of 6.6kw 380v, allowing precise model selection according to capacity needs

Excellent Structure, Stable Operation: Composed of core components such as chain plate conveyor, automatic bottle-clamping alignment mechanism and electric lifting adjustment mechanism, with reasonable structural design and stable operation

Intelligent Operation, Easy to Master: Equipped with a touch-type human-machine operation interface, with intuitive and convenient parameter setting, allowing quick mastery without complex training

Quotation valid period:

6 months

Delivery date:

<30 Days

Payment terms:

T/T

Guarantee period:

1 Year

Inquiry

Write a Review

Twelve-Head Tracking Filling Machine RF-GSF-6/8/10/12 follow-up high-speed filling machine for different shape, different height, different capacity bottles

The RF-GSF-6L/8L/10L/12L Twelve-Head Tracking Filling Machine is an automated equipment specially designed for high-speed filling scenarios of multi-specification bottles. Composed of key components such as a chain plate conveyor, automatic bottle-clamping alignment mechanism, filling mechanism and automatic servo follow-up system, it features an excellent structure and stable operation, adapting to large-scale production needs in food, chemical and other industries.

Adopting core tracking-type filling technology, the equipment is equipped with sensors for precise bottle detection and an automatic servo follow-up system, realizing continuous filling without production pauses. Compared with traditional multi-head filling machines, its efficiency is greatly improved—each model’s filling speed ranges from 60-130 bottles per minute (based on 100-500ml), completely solving the efficiency bottleneck of traditional equipment’s stop-and-fill mode. Meanwhile, it boasts strong adaptive flexibility with a filling range of 100-1000ml, easily adapting to bottles of different shapes, heights and capacities. Product changeover adjustment can be completed in just a few minutes without complex debugging, perfectly meeting the demand for frequent machine adjustment in multi-variety and small-batch production.

It delivers outstanding filling precision, with measurement error strictly controlled within ±1%, ensuring product quality consistency and reducing material waste. Equipped with a touch-type human-machine operation interface and an electric lifting adjustment mechanism, the equipment allows intuitive and convenient parameter setting, enabling easy mastery. Combined with a waterproof electric control cabinet, it adapts to complex workshop working environments and operates stably and reliably. Currently, four models are available, all with a unified power of 6.6kw 380v, differing only in size, weight and capacity gradients. Enterprises can accurately select models according to their actual production capacity needs, making it an ideal choice for efficient, flexible and precise filling.

Features

Tracking-Type High-Speed Filling, Efficient & Continuous: Equipped with high-precision sensors and an automatic servo follow-up system, it achieves precise bottle detection and tracking-type filling. The production process requires no pause, with strong continuity, completely breaking the efficiency bottleneck of "stop-and-fill" in traditional multi-head filling machines. Each model’s filling speed reaches 60-130 bottles/minute (based on 100-500ml), significantly improving large-scale production efficiency and meeting high-capacity needs.

Multi-Specification Universal Adaptation, Easy Product Changeover: With a filling range of 100-1000ml, it can flexibly adapt to bottles of different shapes, heights and capacities without replacing core components. Product changeover adjustment can be completed in just a few minutes without complex debugging, completely solving the time-consuming and laborious problem of frequent machine adjustment in multi-variety and small-batch production, and greatly improving production line flexibility.

Precise Measurement, Controllable Error: The filling measurement error is strictly controlled within ±1%, with strong consistency among all filling heads. It can effectively reduce material waste, ensure the capacity stability of each batch of products, enhance product quality and market competitiveness, and is suitable for food, chemical and other industries with high requirements for filling precision.

machine and products

Twelve-Head Tracking Filling Machine

Twelve-Head Tracking Filling Machine

Features

Multiple Gradient Models Available, Capacity-Adaptable: Four gradient models are available: RF-GSF-6L/8L/10L/12L, with filling speeds ranging from 60-130 bottles/minute. The power (6.6kw 380v) and working air pressure (0.6-0.7mpa) are unified, and only the size and weight are adjusted with model gradients. Enterprises can accurately select models according to their own production capacity and workshop layout, avoiding redundant or insufficient equipment performance.

Excellent Structure, Stable Operation: Composed of core components such as chain plate conveyor, automatic bottle-clamping alignment mechanism, electric lifting adjustment mechanism and waterproof electric control cabinet, it has a reasonable structural design, balanced force and stable operation without jitter.

Intelligent Operation, Easy to Master:Equipped with a touch-type human-machine operation interface, parameter setting and working status checking are intuitive and convenient. The Chinese operation logic is clear, allowing quick mastery without professional technical training.

Main technical parameters

Model	RF-GSF-6L	RF-GSF-8L	RF-GSF-10L	RF-GSF-12L
Filling Speed	<60-80 bottles/min(base on 100-500ml)	<80-100 bottles/min(base on 100-500ml)	<90-120 bottles/min(base on 100-500ml)	<100-130 bottles/min(base on 100-500ml)
Filling range	100-1000ml	100-1000ml	100-1000ml	100-1000ml
Measurement	±1%	±1%	±1%	±1%
Power	6.6kw 380v	6.6kw 380v	6.6kw 380v	6.6kw 380v
Working air pressure	0.6-0.7mpa	0.6-0.7mpa	0.6-0.7mpa	0.6-0.7mpa
Machine dimension	300015002300mm	300015002300mm	400015002300mm	500015002300mm
Weight	600kg	650kg	850kg	950kg
