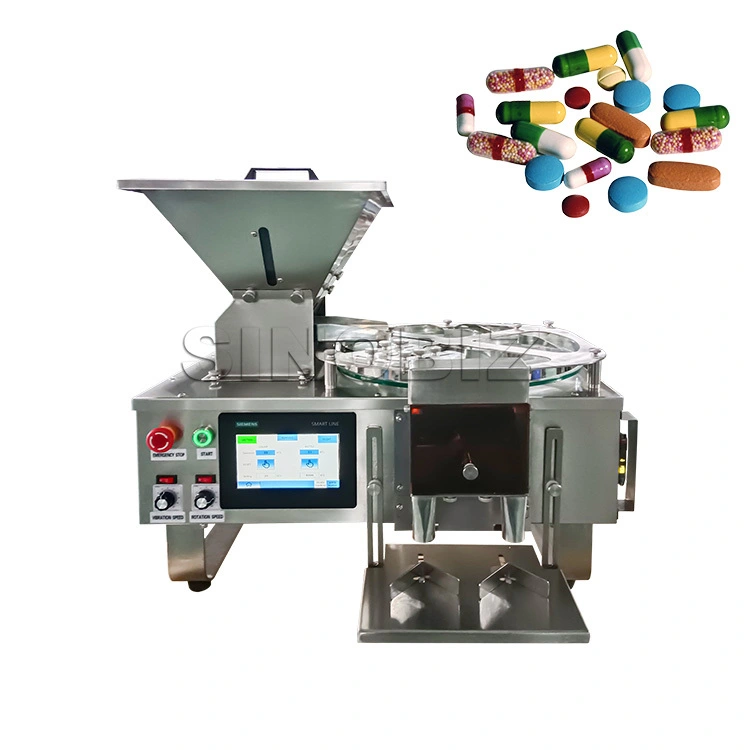

GMP standards Electronic Counting Machine high-efficiency ZS-2B
This machine belongs to the quasi desktop type counting device with reasonable design and compact structure. The machine is easy to operate and high-efficiency, which can be widely used in a variety of different shapes and size tablets, capsules, pills, transparent soft capsules and other drugs counting . The counting accuracy reach advanced levels in the world.
ZS-2B Basic parameters
|
Product model：ZS-2B |
|
|
speed |
600-2000pcs/min |
|
Application |
Hard capsules, soft capsules, tablets, pills, etc. |
|
Control device |
Touch screen |
|
Counting method |
Infrared detection |
|
Suitable size |
Capsule model 00 # -5 # |
|
Counting error |
±0.3% |
|
Voltage |
220V/50-60Hz /100W |
|
Weight（kg） |
50kg |
|
Overall dimension |
735mmX580MMX720MM |
|
Machine material |
Material stainless steel 304 (0Cr18Ni9) |
Samples
ZS-2B Counting machine configuration list
|
Name |
Specification |
Brand |
Quantity |
|
touch screen |
6AV6648-ODC11-3AXO |
SIEMENS |
1 |
|
PLC Controller |
6ES7288-1ST20-0AA1 |
SIEMENS |
1 |
|
Fiber Optic Sensor |
FS-N41N |
Japan Keant |
1 |
|
Optical fiber |
FU-E40 |
Japan Keant |
1 |
|
Motor |
4RK40RGN-C |
ZHEJIANG ZAHNPENG |
1 |
|
Oscillator |
self made |
Fupai |
1 |
|
Intermediate relay |
RJ1S-CL-D24 |
Japan Idec |
1 |
|
solid state relay |
SSR-10 DD |
Taiwan Yangming |
2 |
|
Electromagnet |
self made |
Fupai |
2 |
